Dokmai Steel is a flat steel perforated head - end to form and applied in to the gate-shirt by weave into shaped X. Dokmai Steel have short size and long size.

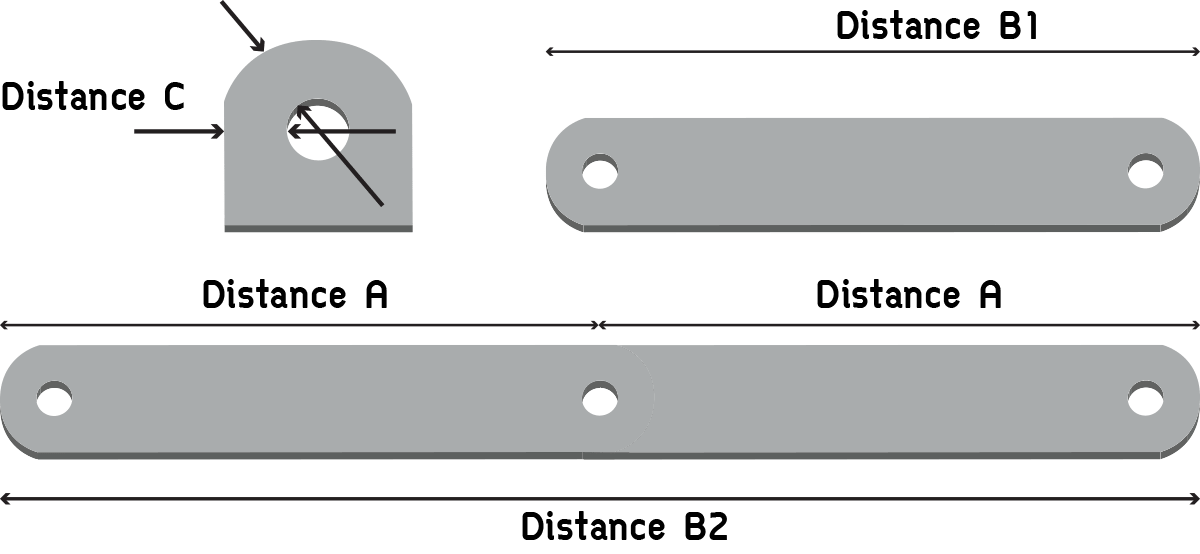

Size and Thickness for Manufacture
| Short size | |
|---|---|
| Detail | (mm.) |
| Distance from point A |
219 |
| Coordinates Drill hole |
6.2-6.4 |
| Distance Coordinates A |
218-220 |
| Distance from point C |
more than 3.50 up |
| Coordinates Length B1 |
238±1 |
| Coordinates Width |
15.7-16.3 |
| Coordinates Thickness | 3.5-4.2 |
| Flatness by placing on the flat surface | arch less than 0.2 |
| Straight by placing on the flat surface | curve / bend less than 0.2 |
| Weight number per sheave | 25 kg. |
| Long size | |
|---|---|
| Detail | (mm.) |
| Distance from point A |
219 |
| Coordinates Drill hole |
6.2-6.4 |
| Distance Coordinates A |
218-220 |
| Distance from point C |
more than 3.50 up |
| Coordinates Length B2 |
455±1 |
| Coordinates Width |
15.7-16.3 |
| Coordinates Thickness | 3.5-4.2 |
| Flatness by placing on the flat surface | arch less than 0.2 |
| Straight by placing on the flat surface | curve / bend less than 0.3 |
| Weight number per sheave | 36 kg. |
More detail
- The tools of drill don't have to exceed 0.5 mm. and have to be in the same side.
- Flat Rolled Steel don't have a deep cracks split of raw materials by observing if there is to be found in the middle of thickness and length is short.
